Showing 25–36 of 41 resultsSorted by price: high to low
-
Capacitor, Capacitor ICAR

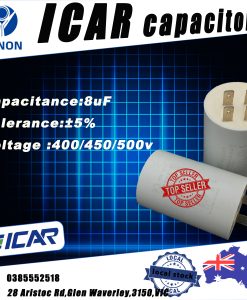

8.0uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
8.0uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
8.0
+/-5%
30,000
10,000
35
72*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
10.0uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
10.0uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
10.0
+/-5%
30,000
10,000
35
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
ICAR 2.5uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
2.5uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
2.5
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
ICAR 2uF Run Capacitor ICAR P0 Plastic 400/450/500motor pump spa dryer drill compress
2uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
2.0
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
ICAR 1uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
1uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
1.0
+/-5%3
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
20uF Run Capacitor ICAR PO Plastic 400/450V for 240V motor MPP 20mfd fan spa
20uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
20.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
ICAR 16uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
16uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
16.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
ICAR 5uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
5uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
5.0
+/-5%
10,000
3,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
3.5uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
3.5uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
3.5
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
ICAR 22uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
22uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
22.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
3uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
3uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
3.0
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost). and nut, please specify on checkout (no additional cost).
SKU: n/a -
Capacitor, Capacitor ICAR
ICAR 10uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
10uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
10.0
+/-5%
10,000
3,000
35
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
SKU: n/a
-
Capacitor, Capacitor ICAR
8.0uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
8.0uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
8.0
+/-5%
30,000
10,000
35
72*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
10.0uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
10.0uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
10.0
+/-5%
30,000
10,000
35
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 2.5uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
2.5uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
2.5
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 2uF Run Capacitor ICAR P0 Plastic 400/450/500motor pump spa dryer drill compress
2uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
2.0
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 1uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
1uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
1.0
+/-5%3
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
20uF Run Capacitor ICAR PO Plastic 400/450V for 240V motor MPP 20mfd fan spa
20uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
20.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 16uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
16uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
16.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 5uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
5uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
5.0
+/-5%
10,000
3,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
3.5uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
3.5uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
3.5
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 22uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
22uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
22.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
3uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
3uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
3.0
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost). and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 10uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
10uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
10.0
+/-5%
10,000
3,000
35
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
8.0uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
8.0uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
8.0
+/-5%
30,000
10,000
35
72*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
10.0uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
10.0uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
10.0
+/-5%
30,000
10,000
35
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 2.5uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
2.5uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
2.5
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 2uF Run Capacitor ICAR P0 Plastic 400/450/500motor pump spa dryer drill compress
2uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
2.0
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 1uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
1uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
1.0
+/-5%3
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
20uF Run Capacitor ICAR PO Plastic 400/450V for 240V motor MPP 20mfd fan spa
20uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
20.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 16uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
16uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
16.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 5uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
5uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
5.0
+/-5%
10,000
3,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
3.5uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
3.5uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
3.5
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 22uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
22uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
22.0
+/-5%
10,000
3,000
40
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
3uF Run Capacitor ICAR P0 Plastic 400/450/500V Long Life cap motor pump
3uF Run Capacitor ICAR 400/450/500VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
The item is a type PRL long life capacitor. The standard ICAR WB type have a 10,000 hour life these PRL have a 30,000 hours life @ 400V
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
3.0
+/-5%
30,000
10,000
30
51*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type PRL – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type PRL – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost). and nut, please specify on checkout (no additional cost).
-
Capacitor, Capacitor ICAR
ICAR 10uF Run Capacitor P0 Plastic 400/450V motor pump spa dryer drill compress
10uF Run Capacitor ICAR 400/450VAC motor pump dryer fan induction
You are dealing with one of the largest importers of ICAR capacitors. We import many capacitors from around the world (See our other listing for starts and square capacitors). This listing is for one new ICAR Capacitor as specified below – ICAR Capacitors are highly regarded in the industry for their quality and reliability. All capacitors are tested by us to be within their capacitance tolerance before they are shipped to you.
Capacitance (uF or mfd)
Tolerance
400V (hours)
450V (hours)
Diameter (mm)
Length (mm)
Connector
10.0
+/-5%
10,000
3,000
35
71*
Double Faston 6.3
*attached stud adds 10 mm to specified length
Technical Data
Type
P0 ECOFILL
Case
Plastic
Dielectric
Polypropylene
Frequency
50/60 Hz
Voltage Test
b/w terminals: 2.15 UN (2 s) / terminals/case: 2.5 kV (2 s)
Angle of Loss dV/dt typical
<= 5×10-4 / 10 (V/µs)
Overpressure safety device
No
Tested according to
EN 60252-1
Certification marks
VDE & CE
This ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitor is a self-healing, metallized polypropylene film capacitor, resin filled in a plastic case and is suitable for many applications (i.e: Asynchronous Motors, Swimming Pool Pumps, Compressors, Fans, Household Appliances, Standard Water Pumps etc). Each is marked with VDE and CE certification and is in compliance with EN60252 standards.
ICAR Type WB 40 – Family MLR25 P0 ECOFILL capacitors feature a removable stud design called MultiFix. If you require a stud, washer and nut, please specify on checkout (no additional cost).
