Sale!

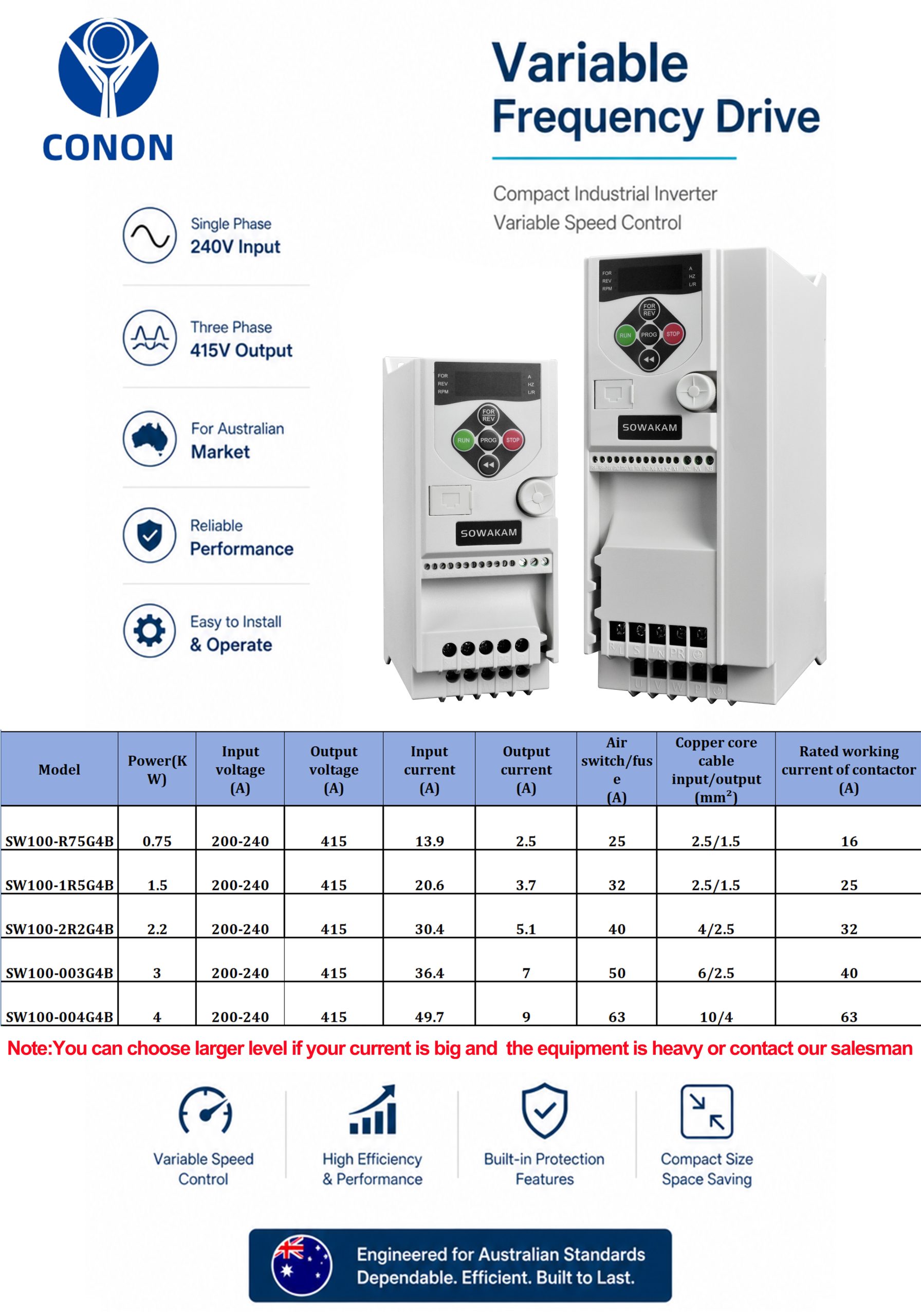

Motor Driver Frequency Inverter Electric VFD 0.75kW Single 240v to 415V

  • Input/Output Power:  0.75KW
  • Input Voltage: Single phase 240V
  • Output Voltage:  Three phase 415V
  • Input/Output Current: 2.5A
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-600 Hz
  • Dimension:173*65*151mm (L x W x H)

$312.00 $416.00

$674.18 for 3 item(s)



The G4 series products is single phase AC 240V input and three phase AC 415V output.

The voltage boosts up via capacitors, not the transformer. This is a CUSTOM DISIGNED product indicated to use with AC induction motor at limited conditions.

  1. The VFD can only drive AC induction motors directly. It CAN NOT provide three phase AC power for equipment other than motors.
  2. Do not connect the VFD output terminal U.V.W to the three phase 415V power distribution system or electrical devices. This VFD CAN NOT to be used as a three phase 415V power source
  3. It is not allowed to install a AC contactor/relay between the motor and the inverter.
  4. Do not directly supply power to the motor through the contactor/relay, air switch, or circuit breaker when the inverter output frequency reaches the maximum frequency to avoid damage to the VFD due to over-current.

For G4 series products, it is recommended that the load be light-loaded when driving the motor.  If the load is heavy-loaded, it is recommended to increase the size of the VFD.

For example: If the load used is a heavy-duty three phase motor with a power of 0.75KW, then the recommended VFD power is a three phase 1.5KW unit.

PAYMENT POLICY

  • PayPal
  • Bank Deposit
    • buyers will see the bank account number in checkout
  • Pay on pick up at our counter

SHIPPING POLICY

Shipping and Handing term and condition:
1. Our orders are usually shipped within 24 business hours after payment received unless there are problems with the order. If this is the case we will contact you via your eBay email address or telephone number.
2. Orders are normally processed each working day not including weekends. Usually if your payment is received after 3:00 P.M. or on the weekend, it is processed on the next business day.
CONTACT DETAILS

CONON PTY LTD
Add:28 Aristoc Rd, Glen Waverley. Vic. 3150
(We are opposite of Monash Aquatic & Recreation Centre. Left entry of the building)
Mobile: 0401 634 280
Phone: (03) 8555 2518
https://www.cononmotor.com.au (online store web)
E-mail: [email protected]
[email protected]

RETURNS POLICY

1- All our products come with 1 year warranty, unless stated otherwise. Stated clearly on the tax invoice.
2- All warranty/return items must accompany by a return approval (RA) note. Please contact us via email, or telephone to obtain a return approval.
We do this to minimize errors and misunderstanding.
3- Any item returned without an RA note will not be looked at or contact and would eventually be discarded. This will cause delay to your warranty claim.

We will not be responsible for any loss incurred by the buyer sending an unmarked item to our store. The Buyer will need to bare all costs in processing the returned item.

Our store carries a large range of motors (single phase and 3 phase) and consumables to suit most residential, industrial and commercial needs. Check out both our retail and online store for more products. Wholesales is available.



SKU: SW100-R75G4B Category:

Basic Information









  1. Sowakam100 Manual, Please CLICK HERE to download
  2. Sowakam100 Brochure, Please CLICK HERE to download.
  3. Sowakam100 CE Certification, Please CLICK HERE to download.
  4. Sowakam100 Maintenance Instruction, Please CLICK HERE to download.



Technical Features

SPECIFICATION

Instructions on the usage conditions of SW100 and SW200 series G4 products

  • Input/Output Power:  0.75KW
  • Input Voltage: Single phase 240V
  • Output Voltage:  Three phase 415V
  • Input/Output Current: 2.5A
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-600 Hz
  • Dimension:173*65*151mm (L x W x H)

SW100 and SW200 series G4 products sold with 1 years replacement warranty!
