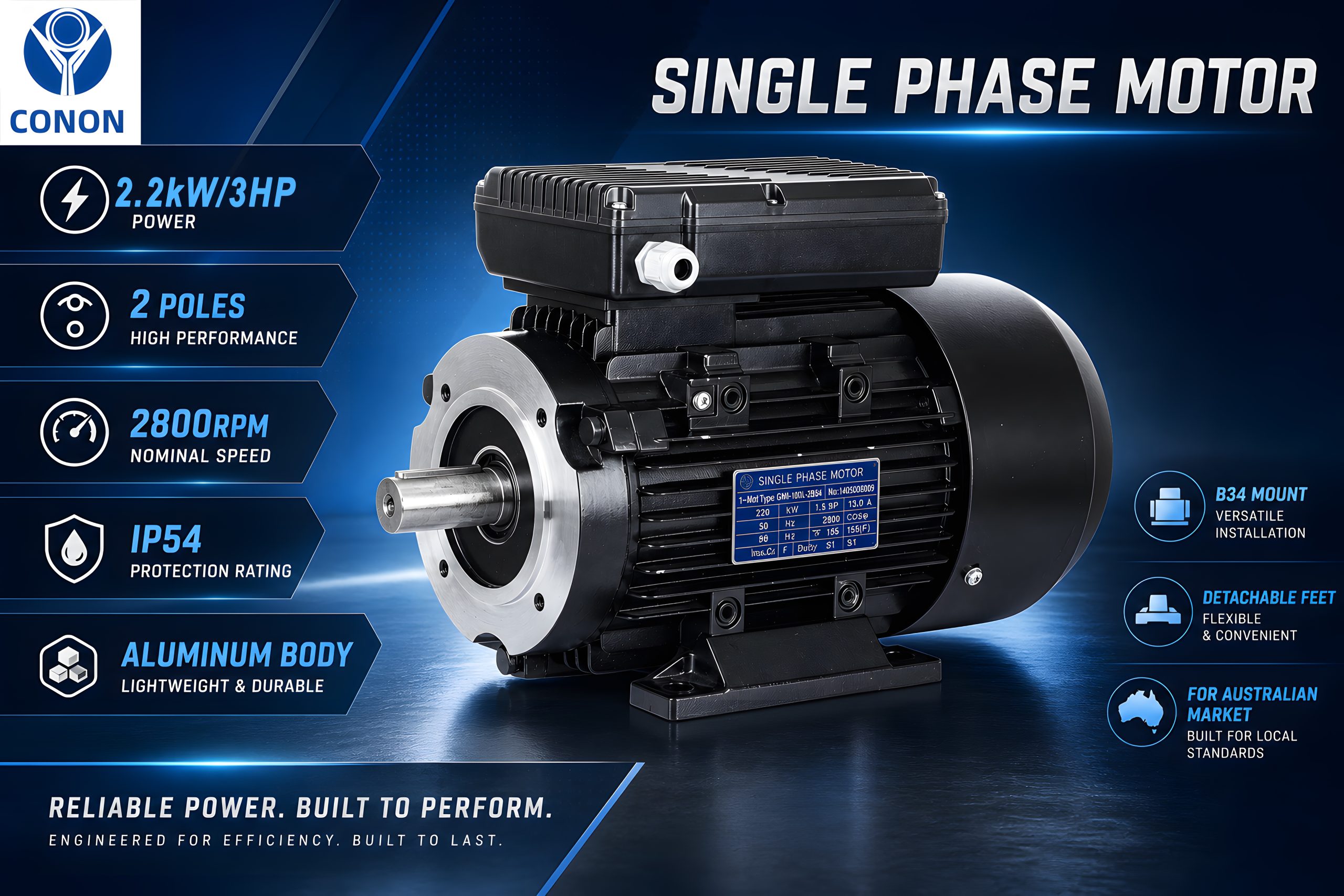

B34 FLANGE 2.2kw/3HP 2800rpm motor single-phase 240v REVERSIBLE CSCR shaft 24mm
- Single phase: 240V
- Type: GMYL-90L2-2
- Power: 2.2KW/3HP
- Speed: 2 Pole (2800rpm)
- Maximum amperage draws: 13.7Amp
- Shaft size: 24mm
- Light weight:24kg
- THIS MOTOR IS PRE-MOUNTED WITH A B34 FLANGE
- Please click download for the full measurement of this motor.
B14 B34 Mounted Motor
$288.00
- Accessories
- Description
- Specification
- Technical parameters
- Installation dimension
- Bearing Size
- Useful Downloads
- Reviews
THIS MOTOR IS PRE-MOUNTED WITH A B14 FLANGE
Brand new Generator. One year warranty.
Please send your detail address to me for asking postage.
PAYMENT POLICY
- PayPal
- PayPal account email address (to receive payments): [email protected]
- Bank Deposit
- buyers will see the bank account number in checkout
- Pay on pick up at our counter
SHIPPING POLICY
1. Our orders are usually shipped within 24 business hours after payment received unless there are problems with the order. If this is the case we will contact you via your eBay email address or telephone number.
2. Orders are normally processed each working day not including weekends. Usually if your payment is received after 3:00 P.M. or on the weekend, it is processed on the next business day.
CONON PTY LTD
Add:28 Aristoc Rd, Glen Waverley. Vic. 3150
(We are opposite of Monash Aquatic & Recreation Centre. Left entry of the building)
Mobile: 0401 634 280
Phone: (03) 8555 2518
https://www.cononmotor.com.au (online store web)
E-mail: [email protected]
[email protected]
1- All our products come with 1 year warranty, unless stated otherwise. Stated clearly on the tax invoice.
2- All warranty/return items must accompany by a return approval (RA) note. Please contact us via email, or telephone to obtain a return approval.
We do this to minimize errors and misunderstanding.
3- Any item returned without an RA note will not be looked at or contact and would eventually be discarded. This will cause delay to your warranty claim.
We will not be responsible for any loss incurred by the buyer sending an unmarked item to our store. The Buyer will need to bare all costs in processing the returned item.
Our store carries a large range of motors (single phase and 3 phase) and consumables to suit most residential, industrial and commercial needs. Check out both our retail and online store for more products. Wholesales is available.
Weight | 24 kg |
---|---|
Dimensions | 35 × 18 × 25 cm |
Technical parameters
TECHNICAL DATA OF GMYL SERIES | |||||||||||||
Franme reference and size | rated power | Full load sreed in revolutions per minute | Full load current at rated voltage | Exiciter Voltage | Efficiency | Power factor | Direct on line staring torque ratio | Direct on line pull out torque ratio | Direct on line starting current ratio | Mean sound pressure level @1m on no load | Start Capacitor |
Running Capacitor |
Weight |
Type | Output | Speed | Amps | Voltage | EFF. | P.F. | LRT/RLT | BDT/RLT | LRA/RLA | Noise | (μf/v) | (μf/v) | Weight |
(KW) | (r/min) | (A) | (V) | (%) | Cosφ | LwdB(A) | (Kg) | ||||||
GMYL711-2 | 0.37 | 2800 | 2.7 | 240 | 67 | 0.92 | 1.8 | 1.6 | 5.5 | 72 | 50/250 | 8/450 | 10 |
GMYL712-2 | 0.55 | 2800 | 3.9 | 240 | 70 | 0.92 | 1.8 | 1.6 | 5.5 | 72 | 100/250 | 15/450 | 11 |
GMYL711-4 | 0.25 | 1400 | 2 | 240 | 62 | 0.92 | 1.7 | 1.6 | 5.0 | 67 | 75/250 | 15/450 | 9 |
GMYL712-4 | 0.37 | 1400 | 2.8 | 240 | 65 | 0.92 | 1.7 | 1.6 | 5.0 | 67 | 75/250 | 15/450 | 10 |
GMYL801-2 | 0.75 | 2800 | 4.9 | 240 | 73 | 0.95 | 1.8 | 1.6 | 5.5 | 75 | 100/250 | 25/450 | 14 |
GMYL802-2 | 1.1 | 2800 | 7 | 240 | 75 | 0.95 | 1.8 | 1.6 | 5.5 | 75 | 100/250 | 30/450 | 15 |
GMYL801-4 | 0.55 | 1400 | 3.95 | 240 | 69 | 0.92 | 1.7 | 1.6 | 5.0 | 70 | 100/250 | 15/450 | 13 |
GMYL802-4 | 0.75 | 1400 | 5.05 | 240 | 71 | 0.95 | 1.7 | 1.6 | 5.0 | 70 | 100/250 | 25/450 | 14 |
GMYL90L1-2 | 1.5 | 2800 | 9.4 | 240 | 76 | 0.95 | 1.8 | 1.6 | 5.5 | 78 | 200/250 | 40/450 | 22 |
GMYL90L2-2 | 2.2 | 2800 | 13.7 | 240 | 77 | 0.95 | 1.7 | 1.6 | 5.5 | 78 | 300/250 | 50/450 | 24 |
GMYL90L1-4 | 1.1 | 1400 | 7.3 | 240 | 72 | 0.95 | 1.7 | 1.6 | 5.0 | 73 | 150/250 | 30/450 | 21 |
GMYL90L2-4 | 1.5 | 1400 | 9.7 | 240 | 74 | 0.95 | 1.7 | 1.6 | 5.0 | 73 | 200/250 | 40/450 | 23 |
GMYL100L-2 | 3 | 2222 | 18.2 | 240 | 79 | 0.95 | 1.7 | 1.6 | 6.0 | 83 | 350/250 | 55/450 | 24 |
GMYL100L1-4 | 2.2 | 1400 | 13.9 | 240 | 76 | 0.95 | 1.7 | 1.6 | 5.0 | 78 | 300/250 | 50/450 | 32 |
GMYL100L2-4 | 3 | 1400 | 18.4 | 240 | 78 | 0.95 | 1.7 | 1.6 | 5.0 | 78 | 350/250 | 55/450 | 33 |
GMYL112M-2 | 3.7 | 2800 | 22.1 | 240 | 80 | 0.95 | 1.7 | 1.6 | 6.0 | 83 | 350/250 | 60/450 | 46 |
GMYL112M-4 | 3.7 | 1400 | 20.8 | 240 | 78 | 0.95 | 1.7 | 1.6 | 5.0 | 78 | 350/250 | 60/450 | 44 |
GMYL132M-2 | 5.5 | 2800 | 31.5 | 240 | 78 | 0.95 | 1.7 | 1.6 | 5.0 | 78 | 350/250 | 75/450 | 55 |
GMYL132M-4 | 5.5 | 1400 | 32.4 | 240 | 78 | 0.95 | 1.7 | 1.6 | 5.0 | 78 | 350/250 | 75/450 | 55 |
Installation dimension
MOUNTING DATA FOR GM | ||||||||||||||||||||
Frame with feet and end-shield with flange (IM B35) | ||||||||||||||||||||
FRAME SIZE |
POLES | A | B | C | D | E | F | G | H | K | P | N | M | S | T | AB | BB | AC | HD | L |
63 | 2、4 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 140 | 95 | 115 | 10 | 3 | 135 | 100 | 120 | 182 | 217 |
71 | 2、4 | 80 | 80 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 160 | 110 | 130 | 10 | 3.5 | 150 | 112 | 135 | 190 | 250 |
80 | 2、4 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 200 | 130 | 165 | 12 | 3.5 | 165 | 125 | 160 | 215 | 290 |
90S | 2、4 | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 200 | 130 | 165 | 12 | 3.5 | 180 | 156 | 175 | 230 | 315 |
90L | 2、4 | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 200 | 130 | 165 | 12 | 3.5 | 180 | 156 | 175 | 230 | 340 |
100L | 2、4 | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 250 | 180 | 215 | 15 | 4 | 205 | 172 | 195 | 250 | 425 |
112M | 2、4 | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 250 | 180 | 215 | 15 | 4 | 245 | 181 | 215 | 285 | 450 |
132S | 2、4 | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 300 | 230 | 26B | 15 | 4 | 280 | 186 | 255 | 335 | 550 |
132M | 2、4 | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 300 | 230 | 265 | 15 | 4 | 260 | 224 | 259 | 330 | 525 |
Bearing Size
Frame Size | Poles | Drive End | Non-Drive End |
International type | Internationat type | ||
63 | 2-4 | 6201-2RZ | 6201-2RZ |
71 | 2-4 | 6202-2RZ | 6202-2RZ |
80 | 2-4 | 6204-2RZ | 6204-2RZ |
90 | 2-6 | 6205-2RZ | 6205-2RZ |
100 | 2-6 | 6206-2RZ | 6206-2RZ |
112 | 2-6 | 6306-2RZ | 6306-2RZ |
132 | 2-6 | 6308-2RZ | 6308-2RZ |
