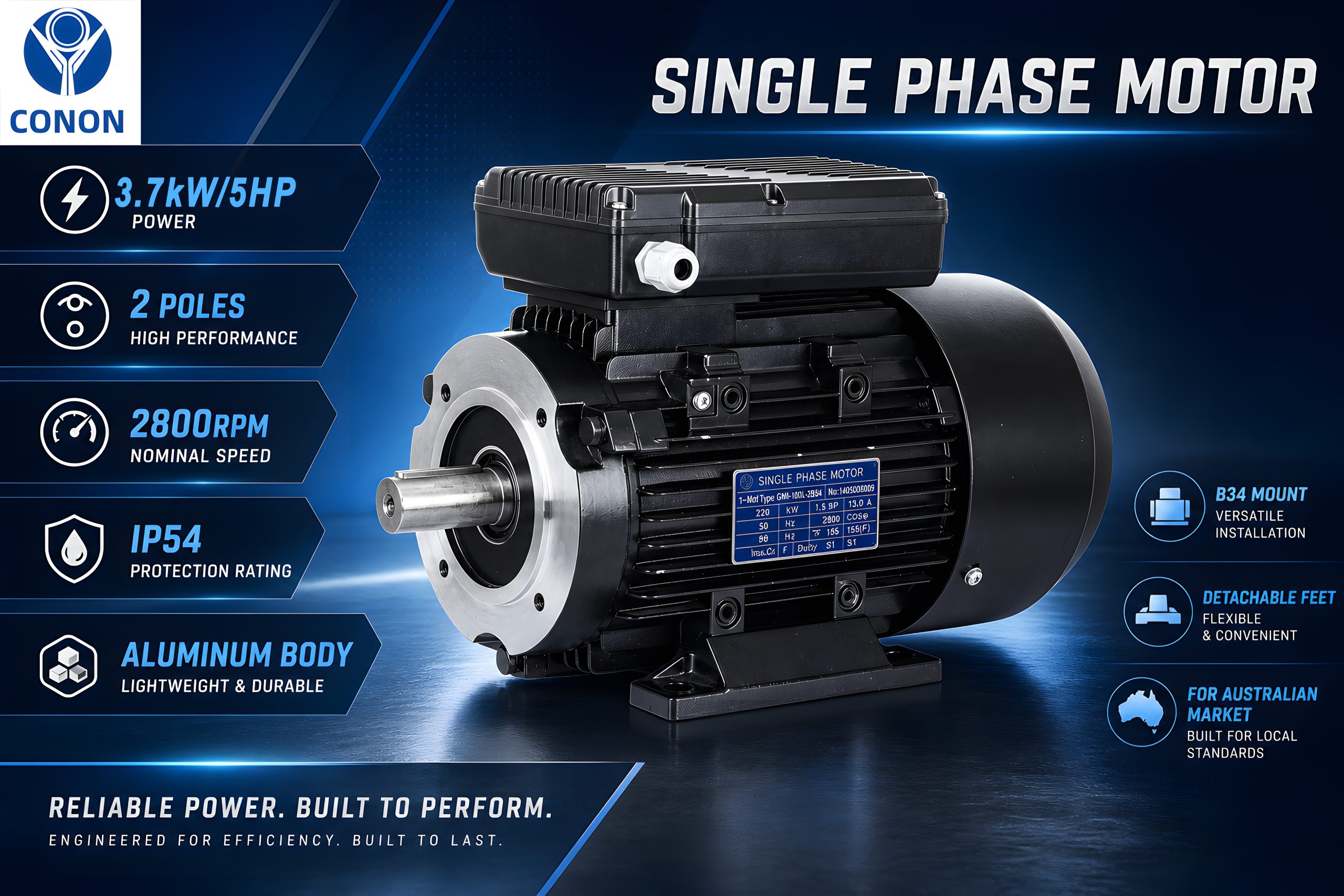

B34 FLANGE 3.7kw/5HP 2800rpm motor single-phase 240v REVERSIBLE CSCR shaft 28mm
- Single phase: 240V
- Type: GMYL-112M-2
- Power: 3.7KW/5HP
- Speed: 2 Pole (2800rpm)
- Maximum amperage draws: 22.1Amp
- Shaft size: 28mm
- Light weight:46kg
- THIS MOTOR IS PRE-MOUNTED WITH A B34 FLANGE

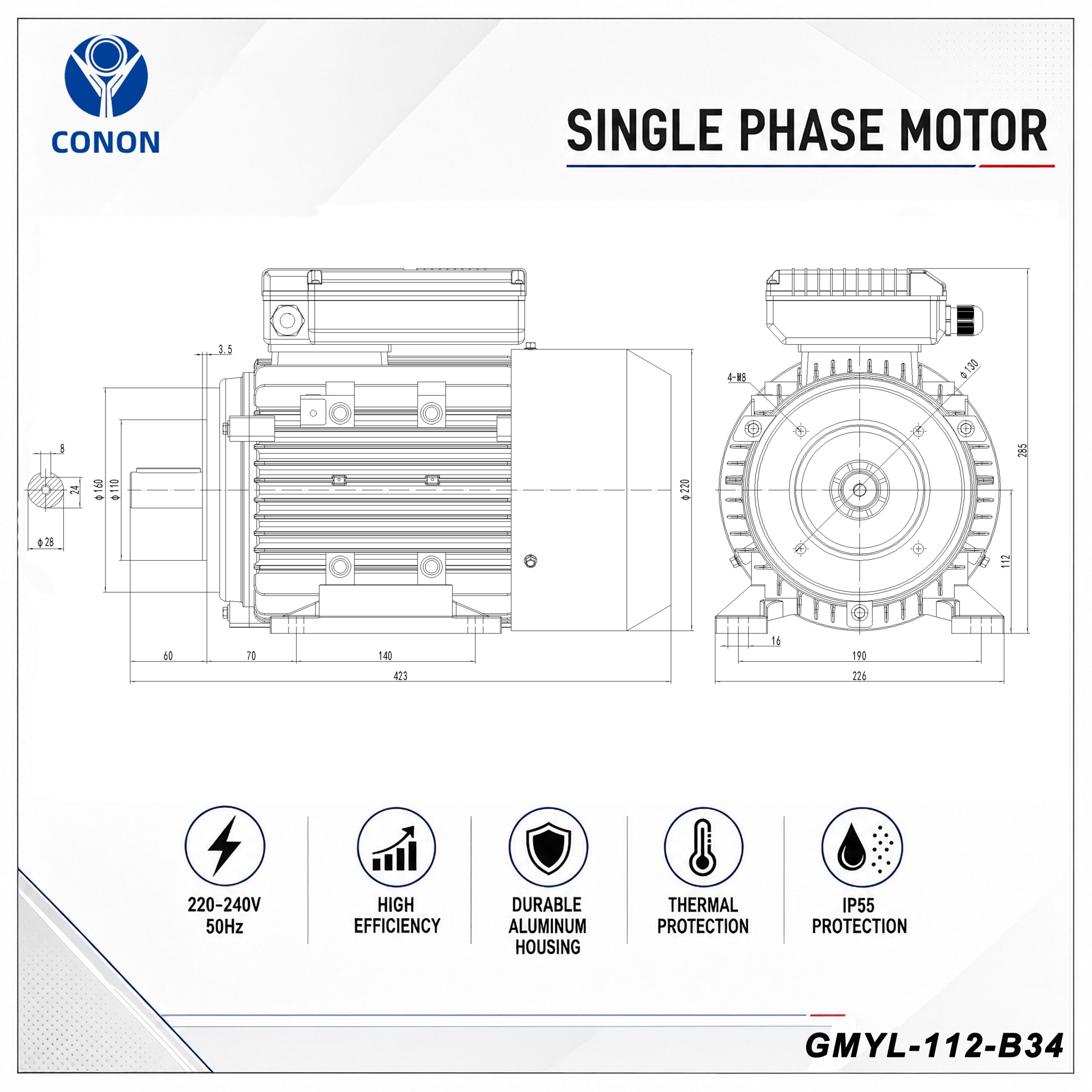

- Please click download for the full measurement of this motor.
B14 B34 Mounted Motor
$448.00
$1,278.50 for 3 item(s)
Single-phase asynchronous motor is a small-power squirrel-cage motor customized for Australia, operating stably without three-phase power, with advantages of simple structure, reliability and easy maintenance, fully complying with local requirements.
I. Core Product Categories
-
YC Series: Dedicated start capacitor, large starting torque, suitable for heavy-load scenarios (e.g., farm water pumps) in Australia.
-
YY Series: Full-capacitor operation, ultra-low noise, low energy consumption, suitable for noise-sensitive scenarios (e.g., household appliances).
-
YL Series: Dual-value capacitor, strong overload capacity, suitable for high-frequency light industrial equipment.
II. Core Advantages
1. Local power: 240V/50Hz (compatible with 230V), AS/NZS 3112 plug, no line transformation. 2. High quality: Pure copper windings, fully enclosed (dust/moisture-proof), adaptive to complex Australian environments. 3. Energy-saving & low-noise: Complies with local environmental and noise standards. 4. Durable: Low failure rate, maintenance-free, suitable for remote farms. 5. Compliant & safe: RCM certified (AS/NZS 60335/60034/CISPR 11/14), IP44/IP54, eligible for Australian market.
III. Core Parameters
Power: 0.12-3KW (customizable); Voltage: 240V/50Hz; Duty cycle: S1; Speed: 2/4/6-pole; Cooling: IC411; Plug: AS/NZS 3112 (8.7±0.5mm sheath).
IV. Applications
Australian households, light industry, agriculture, and small yacht/outdoor equipment.
V. Craftsmanship & After-sales
Thickened cast iron/aluminum alloy, vacuum-impregnated windings; triple inspection; customizable; local after-sales, documents kept ≥5 years (EESS compliant).
| Weight | 46 kg |
|---|---|
| Dimensions | 43 × 24 × 30 cm |
